What Is Activated Carbon for Water Filtration?

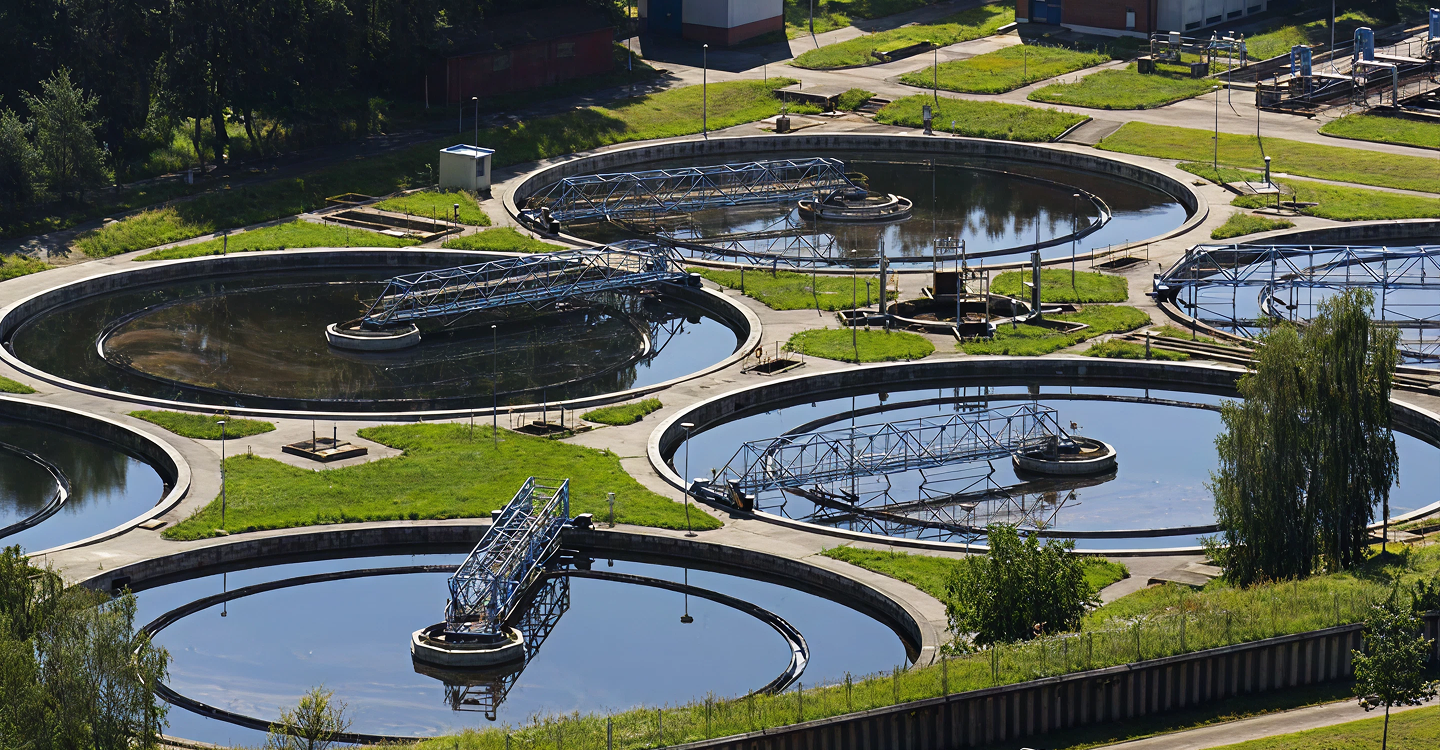

Activated Carbon for Water Filtration is widely used in industrial, municipal and commercial water treatment systems to reduce selected dissolved organic contaminants, residual chlorine, unpleasant taste and odour. Activated Carbon functions primarily through adsorption, where suitable dissolved substances are retained on the extensive internal pore surfaces of the carbon.
Water obtained from different sources may contain organic compounds, chemical residues and other substances that affect its suitability for drinking, manufacturing or industrial processes. Activated Carbon helps improve selected water quality characteristics when integrated into an appropriately designed treatment system.
Unlike conventional sediment filtration, which primarily removes suspended particles, Activated Carbon can reduce certain dissolved compounds that pass through ordinary mechanical filters.
Coconut Shell Activated Carbon for Water Filtration is commonly selected because suitable grades provide a developed pore structure, mechanical hardness and useful adsorption characteristics. These properties make it valuable for drinking water treatment, industrial process water filtration and wastewater polishing.
Why Is Activated Carbon Used in Water Filtration?
Activated Carbon plays an important role in water purification because its highly porous structure provides adsorption sites for various dissolved organic substances. It is commonly installed as an intermediate or final polishing stage within water treatment systems.
Granular coconut shell-based Activated Carbon is particularly useful in applications requiring suitable adsorption properties and resistance to mechanical degradation during filtration operations.
Activated Carbon for Water Filtration supports:
- Adsorption of selected dissolved organic contaminants from water
- Reduction of free residual chlorine in suitable treatment systems
- Improvement of undesirable taste and odour characteristics
- Reduction of selected organic compounds in industrial process water
- Polishing of treated wastewater before further treatment or reuse
- Pre-treatment before chlorine-sensitive reverse osmosis membranes
- Improvement of selected water quality parameters in commercial filtration
- Support for advanced industrial water purification processes
The effectiveness of Activated Carbon depends on matching its adsorption properties with the actual contaminants and treatment requirements. Activated Carbon cannot replace all filtration or disinfection processes.
How Does Activated Carbon Water Filtration Work?
Activated Carbon Water Filtration involves bringing contaminated water into contact with a suitable Activated Carbon medium. The process commonly uses a fixed bed of Granular Activated Carbon through which water flows under controlled operating conditions.
Step 1 - Water Enters the Filtration System
Raw or partially treated water enters the filtration unit. Depending on water quality, sediment filtration or other pre-treatment processes may be required to reduce suspended particles before carbon treatment.
Step 2 - Contact with Activated Carbon Media
Water passes through the Activated Carbon bed. During contact, dissolved substances move toward the external surface and accessible internal pores of the carbon particles.
Step 3 - Adsorption of Organic Contaminants
Selected dissolved organic molecules interact with the Activated Carbon surfaces and are retained through adsorption. Adsorption behaviour depends on the contaminant's chemical properties and the carbon's pore structure.
Step 4 - Reduction of Residual Chlorine
Free residual chlorine can be reduced through surface-mediated chemical reactions at the Activated Carbon surface. This is especially useful when treating water before chlorine-sensitive membrane processes.
Step 5 - Treated Water Leaves the Carbon Filter
Water leaving the Activated Carbon unit may proceed to additional treatment stages, industrial manufacturing processes, storage or distribution, depending on the treatment objective.
Step 6 - Monitoring Filtration Performance
Operators monitor water quality, target contaminant concentrations, flow rate and pressure drop to evaluate filtration performance. Such monitoring helps detect contaminant breakthrough.
Step 7 - Carbon Replacement or Regeneration
Activated Carbon gradually loses available adsorption capacity as contaminants accumulate. Carbon must eventually be replaced or, where technically suitable, regenerated to restore useful adsorption performance.
Adsorption Mechanism of Activated Carbon in Water Filtration
The primary function of Activated Carbon in liquid-phase water treatment is the adsorption of selected dissolved substances. Activated Carbon contains interconnected pores that provide extensive internal surfaces for contaminant retention.
1. Transport of Dissolved Contaminants
Contaminants are transported from the surrounding water toward the external surfaces of Activated Carbon particles.
2. Diffusion into the Carbon Pores
Suitable dissolved molecules move into accessible carbon pores. The rate of movement depends on molecular size, concentration gradients, pore accessibility and operating conditions.
3. Adsorption onto Internal Surfaces
Organic molecules interact with internal carbon surfaces and may be retained through physical adsorption forces. Surface chemistry and water composition influence these interactions.
4. Development of Adsorption Loading
As treatment continues, contaminants accumulate within the carbon. Available adsorption capacity decreases as adsorption sites become occupied.
5. Contaminant Breakthrough
Breakthrough occurs when target contaminant concentrations begin increasing in the treated water. The timing of breakthrough depends on carbon capacity, water chemistry, contaminant loading, contact time and operating conditions.
Understanding adsorption mechanisms helps water treatment operators select suitable carbon media and establish effective replacement schedules.
Important Activated Carbon Properties for Water Filtration
Selecting Activated Carbon for Water Filtration requires evaluating several physical and adsorption characteristics.
1. Iodine Number
Iodine number is commonly used as an indicator associated with microporosity and adsorption characteristics. However, a higher iodine number does not guarantee better removal performance for every water contaminant.
2. Surface Area
The internal surface area of Activated Carbon provides sites for adsorption. Effective contaminant removal also depends on pore accessibility and surface chemistry.
3. Pore Size Distribution
Activated Carbon contains micropores, mesopores and larger transport pores. Different pore sizes influence the movement and adsorption of molecules with different dimensions.
4. Particle Size
Particle size influences adsorption kinetics, pressure drop and hydraulic behaviour. Smaller particles may provide faster adsorption but can increase resistance to water flow.
5. Carbon Hardness
Mechanical hardness is important for Granular Activated Carbon used in water treatment filters. Durable carbon can help reduce particle breakage during handling and backwashing.
6. Ash Content
Ash content represents the inorganic residue present in Activated Carbon. The acceptable level depends on the filtration application and required water quality.
7. Moisture Content
Moisture content is an important product handling and specification parameter. It should be reviewed alongside other carbon quality characteristics.
8. Adsorption Capacity
Adsorption capacity indicates the amount of a particular contaminant that carbon can retain under specified conditions. Representative testing provides useful information for comparing grades.
Types of Activated Carbon for Water Filtration
Different industrial filtration applications require different Activated Carbon forms. The most suitable material depends on the treatment process, equipment configuration and target contaminants.
Granular Activated Carbon (GAC)
Granular Activated Carbon for Water Treatment is widely used in fixed-bed filtration systems. The granular structure allows water to flow through the carbon bed while selected dissolved compounds are adsorbed.
Typical applications include:
- Municipal drinking water treatment
- Industrial process water filtration
- Wastewater polishing
- Reverse osmosis pre-treatment
- Groundwater treatment
- Commercial water purification
Powdered Activated Carbon (PAC)
Powdered Activated Carbon is a fine-particle adsorption material commonly added directly to water during treatment. PAC is useful for variable contaminant loads or temporary treatment requirements.
After adsorption, PAC normally requires separation through suitable clarification or filtration equipment.
Coconut Shell Activated Carbon
Coconut Shell Activated Carbon for Water Filtration is valued for its developed microporous structure, mechanical hardness and suitable adsorption properties for many liquid-phase applications.
At Carbure Activated Carbon, selected coconut shells are converted into Coconut Charcoal. The Coconut Charcoal faces superheated steam at 1000°C during the controlled activation process, developing the internal porous structure of Steam Activated Carbon.
The resulting carbon can be processed and classified according to particle size and application-specific filtration requirements.
Industrial Applications of Activated Carbon for Water Filtration
Activated Carbon is used across multiple industries where water quality and contaminant control are essential for reliable treatment and manufacturing operations.
1. Drinking Water Treatment
Activated Carbon supports drinking water treatment by reducing selected organic contaminants, free residual chlorine and undesirable taste and odour compounds. Additional disinfection and treatment may be required to meet drinking water safety standards.
2. Industrial Process Water Filtration
Industrial manufacturing facilities may require water with controlled levels of organic substances and residual disinfectants. Activated Carbon filtration helps improve suitable process water quality parameters.
3. Wastewater Treatment and Polishing
Activated Carbon can help reduce selected residual dissolved organic compounds in treated wastewater. It is often used as a polishing stage after appropriate physical, chemical or biological treatment.
4. Reverse Osmosis Pre-Treatment
Activated Carbon is commonly installed before chlorine-sensitive reverse osmosis membranes to reduce free residual chlorine. Proper monitoring and microbial control are essential.
5. Groundwater Treatment
Groundwater affected by selected dissolved organic contaminants may be treated using appropriate Activated Carbon grades. Water analysis and pilot testing help determine treatment suitability.
6. Food and Beverage Water Processing
Activated Carbon filtration can help improve selected water quality characteristics in food and beverage processing, including taste, odour and residual chlorine levels where appropriate.
7. Pharmaceutical and Chemical Industries
Activated Carbon is used in selected water treatment and purification operations within pharmaceutical and chemical manufacturing facilities. Carbon grade selection must reflect process requirements.
8. Commercial Water Purification Systems
Commercial filtration systems may use Activated Carbon for taste and odour improvement, chlorine reduction and supplemental water quality treatment.
Key Benefits of Coconut Shell Activated Carbon for Water Filtration
Coconut shell-based Activated Carbon offers several advantages when properly selected for the required water filtration application.
- Adsorption Performance: Developed pores provide adsorption sites for selected dissolved contaminants.
- Mechanical Strength: Suitable grades offer good hardness and abrasion resistance.
- Chlorine Reduction: Supports removal of free residual chlorine in appropriately designed systems.
- Taste and Odour Improvement: Helps reduce selected substances responsible for undesirable water characteristics.
- Industrial Compatibility: Suitable for many continuous and multi-stage filtration applications.
- Water Quality Polishing: Supports advanced treatment of selected organic contaminants.
- Flexible Grade Selection: Different particle sizes can be selected for specific filtration systems.
- Renewable Raw Material: Coconut shells are an agricultural by-product, although full environmental impact depends on manufacturing and lifecycle conditions.
Factors Affecting Activated Carbon Water Filtration Performance
Filtration efficiency depends on both Activated Carbon characteristics and the operating conditions of the water treatment system.
- Water quality: Contaminant composition determines adsorption requirements.
- Contaminant concentration: Higher loading can shorten carbon service life.
- Carbon adsorption characteristics: Pore structure and surface chemistry influence removal performance.
- Particle size: Affects adsorption kinetics and pressure drop.
- Contact time: Adequate contact is necessary for effective treatment.
- Flow rate: Hydraulic loading influences water residence time.
- Water pH: Can affect contaminant chemistry and adsorption behaviour.
- Temperature: May influence adsorption equilibrium and kinetics.
- Competing compounds: Other dissolved substances may compete for adsorption sites.
- Suspended solids: Excessive solids can contribute to filter clogging.
- Carbon fouling: Deposited substances can reduce accessible adsorption surfaces.
- Breakthrough monitoring: Helps determine when carbon performance becomes insufficient.
Water treatment operators should evaluate these factors together to maintain reliable filtration performance and avoid premature carbon replacement.
Granular Activated Carbon (GAC) vs Powdered Activated Carbon (PAC)
Granular Activated Carbon and Powdered Activated Carbon are commonly used in water treatment applications. The main difference is their physical form and how they are introduced into the treatment process.
| Parameter | Granular Activated Carbon (GAC) | Powdered Activated Carbon (PAC) |
|---|---|---|
| Physical form | Granular particles | Fine powdered particles |
| Typical application | Fixed-bed water filtration | Direct dosing or contact treatment |
| Operating mode | Commonly continuous filtration | Batch or continuous dosing |
| Carbon separation | Retained within filter vessel | Requires downstream separation |
| Performance factors | Bed depth, contact time and breakthrough | Dosage, mixing and contact time |
| Typical uses | Drinking water, process water and wastewater polishing | Taste and odour control and targeted organic contaminant removal |
| Replacement | Carbon bed is replaced or regenerated as required | Spent carbon is normally removed with treatment residuals |
Neither GAC nor PAC is universally better. The appropriate form depends on treatment objectives, equipment configuration, contaminant characteristics and operating requirements.
Common Activated Carbon Water Filtration Challenges
1. Reduced Adsorption Capacity
Activated Carbon gradually loses available capacity as contaminants accumulate. Monitor contaminant breakthrough to identify when replacement or regeneration is necessary.
2. High Pressure Drop
Excessive pressure drop may result from suspended solids, carbon fines, biological growth or unsuitable filtration conditions. Review upstream filtration and hydraulic operation.
3. Carbon Fines and Particle Breakage
Handling and backwashing may cause mechanical degradation. Selecting suitable carbon hardness and particle size can help reduce excessive fine generation.
4. Inadequate Contact Time
High flow rates or insufficient carbon bed volume may reduce effective contact time and lead to earlier contaminant breakthrough.
5. Microbial Growth in Carbon Beds
Activated Carbon beds can support microbial growth under certain conditions. Appropriate design, maintenance, monitoring and sanitation are necessary, especially in drinking water systems.
6. Inconsistent Treated Water Quality
Variations in inlet water quality, competing organic compounds and operating conditions can influence filtration performance. Regular water analysis helps identify the cause of changes.
How to Select Activated Carbon for Water Filtration
Selecting suitable Activated Carbon is important for achieving consistent adsorption performance, managing operating costs and meeting treatment objectives.
1. Identify Water Treatment Requirements
Determine the source water characteristics, contaminants requiring reduction and required treated water quality.
2. Evaluate Adsorption Performance
Compare Activated Carbon grades using representative contaminant testing when possible. Surface area or iodine number alone should not determine selection.
3. Check Particle Size Compatibility
Select an appropriate particle size range according to filter vessel design, pressure drop and adsorption requirements.
4. Review Carbon Hardness
Mechanical durability is important for carbon handling, installation, backwashing and long-term filtration operation.
5. Consider Empty Bed Contact Time
Empty Bed Contact Time (EBCT) is an important design consideration for fixed-bed Activated Carbon systems. Required contact time varies according to the target contaminants.
6. Check Carbon Quality Specifications
Review iodine number, particle size, moisture, ash, hardness and other application-specific parameters.
7. Evaluate Water Chemistry
Consider pH, temperature, competing dissolved substances and contaminant concentrations, as these can influence adsorption.
8. Consider Maintenance and Replacement
Assess anticipated contaminant loading, breakthrough monitoring, carbon replacement procedures and possible regeneration options.
9. Conduct Application-Specific Testing
Laboratory testing or controlled plant trials using representative water samples can provide a stronger basis for selecting Activated Carbon.
Why Choose Carbure Activated Carbon for Water Filtration?
Carbure Activated Carbon Pvt. Ltd., India, an Activated Carbon Manufacturer in India, manufactures and supplies coconut shell-based Activated Carbon for industrial adsorption, filtration and purification applications.
Using Coconut Charcoal and controlled Steam Activation, Carbure develops Activated Carbon products intended for different industrial adsorption and physical performance requirements.
For water filtration applications, important considerations when selecting Carbure Activated Carbon include:
- Coconut shell-based Steam Activated Carbon
- Granular Activated Carbon for industrial filtration
- Adsorption properties suited to treatment objectives
- Particle size and filter system compatibility
- Mechanical hardness and carbon handling requirements
- Water quality and contaminant characteristics
- Technical discussions for application-based selection
- Industrial and bulk supply enquiries
Customers can share their water analysis, flow rate, target contaminants, filtration specifications and operating conditions to discuss suitable Activated Carbon options.
Explore more about Activated Carbon for Water Treatment in India and its use in industrial purification applications.
Activated Carbon for Water Filtration - Final Thoughts
Activated Carbon for Water Filtration is an important adsorption technology used in drinking water treatment, industrial process water purification, wastewater polishing and other liquid-phase applications.
Its developed pore structure supports the reduction of selected dissolved organic contaminants, while carbon surface reactions can reduce free residual chlorine under suitable treatment conditions.
The overall effectiveness of filtration depends on carbon quality, pore accessibility, contact time, water chemistry, flow conditions and proper maintenance.
By selecting suitable coconut shell-based Steam Activated Carbon and confirming its performance through representative testing, water treatment facilities can work toward reliable adsorption performance and consistent treated water quality.
Frequently Asked Questions About Activated Carbon for Water Filtration
Activated Carbon for Water Filtration is a porous adsorption material used to reduce selected dissolved organic contaminants, residual chlorine, and taste and odour-causing compounds in water. It is widely used in industrial water treatment, drinking water filtration and wastewater polishing.
Coconut Shell Activated Carbon offers a developed microporous structure, good mechanical hardness and adsorption properties suitable for many water filtration applications. Performance depends on the selected grade and contaminants.
Granular Activated Carbon (GAC) is commonly used in fixed-bed continuous filtration systems, while Powdered Activated Carbon (PAC) is usually dosed into water during treatment and subsequently separated.
No. Activated Carbon can reduce many selected organic contaminants and residual chlorine, but it does not reliably remove dissolved salts, all metals or microorganisms. Additional filtration or disinfection may be necessary.
Replacement depends on water quality, contaminant concentration, adsorption capacity, flow rate and operating conditions. Monitoring contaminant breakthrough helps determine when replacement is required.
Carbure Activated Carbon Pvt. Ltd. manufactures and supplies coconut shell-based Steam Activated Carbon in India for industrial water filtration, wastewater polishing and other purification applications.
Looking for Activated Carbon for Water Filtration?
Carbure Activated Carbon manufactures coconut shell-based Steam Activated Carbon in India for industrial water filtration, process water treatment, wastewater polishing and other liquid-phase purification applications. Our Activated Carbon grades can be evaluated according to adsorption properties, hardness, particle size and filtration system requirements.
Share your water treatment requirements, target contaminants, flow rate, operating conditions and required Activated Carbon specifications with Carbure Activated Carbon. Contact our team to discuss suitable Granular Activated Carbon and coconut shell-based filtration media for your industrial application.
